Moog announces Sub 37 Tribute Edition

The Moog Sub 37 Tribute Edition is a limited edition (2-note) paraphonic analog synthesizer built on the award winning Sub Phatty sound engine. Its panel features 40 knobs, 74 switches, and has a dedicated LCD display – placing each critical sound creation element and live performance tool quickly at your command.

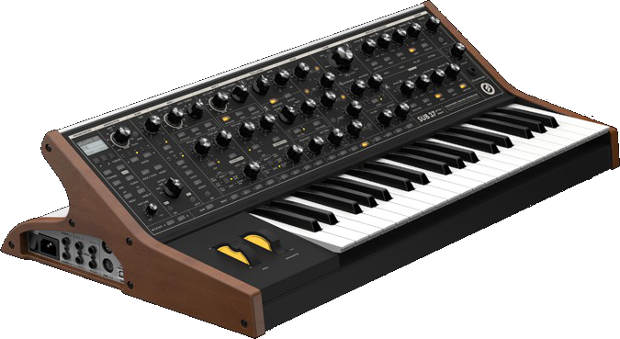

Sub 37 Tribute

This synth includes new features including Duo Mode, which allows oscillator 1 and oscillator 2 to be played independantly, programmable arpeggiator/step sequencer, two modulation busses with assignable source and destination options, access to 256 presets, and a 37 note velocity sensitive keyboard with after-touch.

A fully featured mixer section contains dedicated controls and mutes for each sound source, as well as a level control for External audio input and Feedback – which feeds the output of the filter directly back to the input of the mixer.

Also included are the powerful DAHDSR envelopes from the Sub Phatty with panel control of each extended function. And like the Sub Phatty, the Sub 37 Tribute includes a free standalone/plugin editor that is compatible with all major plugin formats – creating seamless integration between analog synth and DAW for total control, recall, and automation of every parameter

Specifications

SOUND ENGINE: 100% Analog
POLYPHONY: Selectable Monophonic or Paraphonic
KEYBED: 37 Note Semi-weighted with After Pressure
LCD: 128 X 64 pixel LCD with white backligh
CONTROLLERS:Pitch Bend, Mod Wheel, After Pressure, Breath, Velocity
SOUND SOURCES: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1 Analog Noise Generator, 1 External Input/Filter Feedback
OSCILLATOR CALIBRATION RANGE: 22Hz-6.8KHz. Note range at 8’ = 18 – 116
GLIDE MODULE: Assign to Osc1/Osc2/Both. Type – LCR, LCT, EXP, Gated, Legato
FILTER: 20Hz-20Khz Moog Ladder Filter w/ 6/12/18/24 dB/Oct Filter Slopes and MultiDrive
TRANSPOSITION:+/- 1 Octaves
ARPEGGIATOR/SEQUENCER: Up, Down, Order, Random, Latching, Back/Forth, Invert, +/-2 Range, Tie, Rest, MIDI Sync
MODULATION BUSSES:
SOURCES: LFO, Filter Envelope, Programmable Sources – Amp Env,Osc1/Osc2 Pitch
DESTINATIONS: Osc1/Osc2/Both Pitch, Filter Cutoff, Osc1/Osc2/Both Wave, VCA, LFO1/LFO2 Rate, Noise Level, EG Time. Programmable Destinations – Filter resonance, drive, slope, EG amt. Osc1/Osc2/Sub Level, Feedback/Ext Level.
LFO PANEL FEATURES: Hi/Low Range from .01Hz–1kHz, Midi Sync, KB Reset
ENVELOPES: DAHDSR Envelopes with Multi-Trigger, Reset, Looping, MIDI Sync, Latch, and Variable control of EG Delay, Hold, Velocity Amount, KB Tracking.
INPUTS/OUTPUTS:
AUDIO INPUT: 1xTS
AUDIO OUTPUT 1xTS, 1xTRS Headphone with separate volume control
PRESETS: 256 Presets – 16 Banks x 16 presets
MIDI I/O: DIN In/Out, and MIDI over USB
CV/GATE INPUTS: Filter CV, Pitch CV, Volume CV, KB Gate
POWER: 110VAC-240VAC Universal Power Supply with IEC connector
WEIGHT: 22lbs
DIMENSIONS: 6.75H x 26.75”W x 14.75”D
