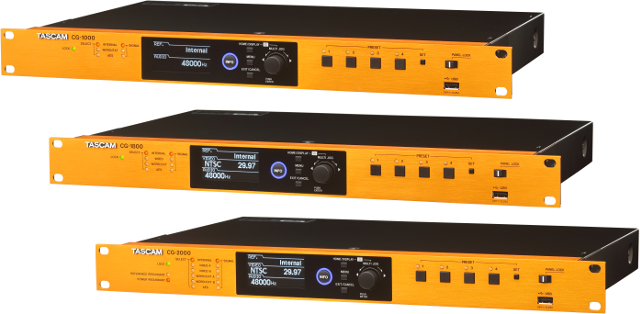

TASCAM has introduced three master clock generators for studio and broadcast applications. Each of the CG-series clock generators has a high-quality OCXO.
This oven-controlled crystal oscillator has 0.01PPM accuracy – the highest precision in its class. Jitter Management and Glitch-free Relocking circuits make TASCAM’s CG-series generators ensure highly-accurate clock outputs. For applications demanding even more accuracy, a 10MHz input accepts signal from Rubidium-based generators.
The CG-1000 is a clock generator designed for recording studios, engineers and musicians. It has twelve word clock outputs, two AES/EBU, and two S/PDIF outputs. Two of the clock outputs can output multiples of 1/2Fs, 1/4Fs, 2xFs, 4xFs, and 256x the selected sampling rate. Four front-panel preset buttons recall often-used frequencies and other settings, and settings can be saved to a USB drive. A menu screen is provided for additional settings, and the front panel can be locked to prevent accidental changes.
TASCAM’s CG-1800 is designed for post-production facilities. This clock generator adds video clock capability to the CG-1000 feature set. Four video clock outputs and a video clock input ensure tight synchronization with video devices. The video clock is compatible with tri-level sync for high-definition video. An additional Analyzer function is also available to measure input frequencies, levels, and termination to assist troubleshooting in large facilities.
The CG-2000 adds redundant power sources and clock sources for broadcast applications, insuring transmissions against dropouts or dead air. A GPO (General Purpose Output) is also provided for tally alarms and monitoring system status.
With best-in-class clock precision, glitchless relocking, and broadcast-specific options, every facility needs an upgrade to the TASCAM CG-series.
- CG-1000: $1,299 estimated street price
- CG-1800: $1,699 estimated street price
- CG-2000: $2,999 estimated street price
More information on the Tascam website
