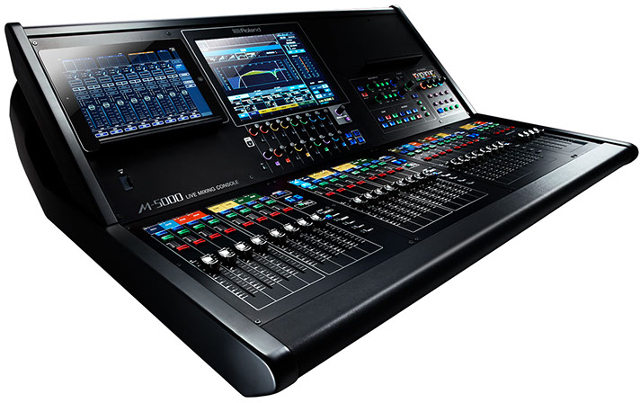

Roland goes into serious live mixing with the new M-5000 live mixing console.
The Roland M-5000 console’s internal mix architecture is not fixed and can be freely defined within a range of up to 128 input/output channels/busses. This allows you to essentially “build” a console structure based on the immediate needs of the application. This makes for a console that accommodates high levels of flexibility for precise response to dynamically changing applications and venues.
Specs:
Up to 128 audio paths selectable by
• INPUT channel
• MAINS
• AUX
• SUBGROUP
• MATRIX
• MIX-MINUS
• MONITOR
• COMM
• OSC
• PHONES
Inputs
Max 300 ports (96kHz) and 460 ports (48kHz, 44.1kHz)
• Analog: 16
• AES/EBU: 4 (2 stereo)
• REAC: 80 (40 x 2 ports)
• Expansion Slots: 2 (160 @ 96kHz, 320 @ 48kHz, 44.1kHz)
• FX Return: 16 (1L – 8R)
• USB Audio Interface: 16
• iPad Dock Playback: 2 (1 stereo)
• USB Flash Playback: 2 (1 stereo)
• Oscillator (OSC): 2
• Talkback: 2
Outputs
Max 296 ports (96kHz) and 456 ports (48kHz, 44.1kHz)
• Analog: 16
• AES/EBU: 4 (2 stereo)
• REAC: 80 (40 x 2 ports) + Backup/Split Port
• Expansion Slots: 2 (160 @ 96kHz, 320 @ 48kHz, 44.1kHz)
• FX Send: 16 (1L – 8R)
• USB Audio Interface: 16
• iPad Dock Record: 2 (1 stereo)
• USB Flash Record: 2 (1 stereo)
Internal Processing
• 72 bits (fixed point, bus summing)
Signal Processing
• AD/DA Conversion: 24-bits
• Sampling Rates: 96kHz, 48kHz, 41.1kHz
More info: proav.roland.com
