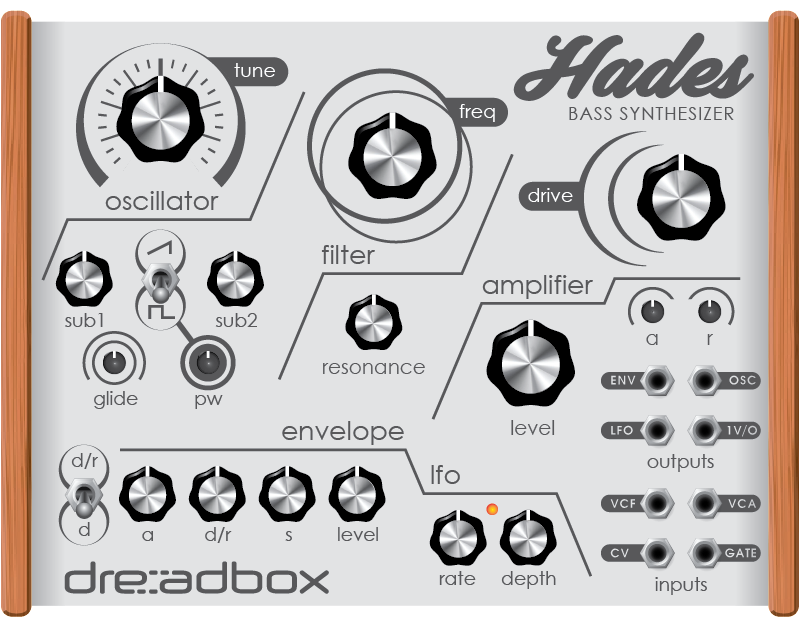

Dreadbox shows Hades Bass Synthesizer

Dreadbox let us know that there  new baby is under development, An Affordable ($299) and High Quality Analog Bass Synthesizer. The Hades Bass Synthesizer.

Specs anf features:

  • Full Analog Circuit only with Through Hole Components
  • 1x VCO with 2 suboctaves (3 voices in total)
  • Pulse width and Glide controls
  • 3-pole 18dB/oct Resonating Low Pass Filter
  • OTA Distortion Circuit for extreme sounds
  • OTA based VCA
  • 2 envelope Generators
    – Attack, Decay/Release, Sustain (extra snappy and patchable)
    – Attack, Release (VCA hardwired)
  • Triangle Wave LFO
  • 8 point patch matrix eurorack compatible
  • 5 MIDI Octaves from C0 up to C5 or unlimited via CV/Gate
  • works only with 12V AC 500mA power supply 2,5mm center pin
  • MIDI interface: Midi in DIN socket, Pitch note/gate on-off, retrigger function, Mod wheel (hardwired on VCF), Pitch wheel, MIDI Channel select 1-7 or Omni (DIP switch)
  • MONO AUDIO OUT (1/4″ TS-Unbalanced), sends up to 10Vpp o
  • Patches: 3.5mm mono
  • Gate in: activation at 0.9V in a low gain up to 5V for max gain
  • Gate out: 0-5V
  • 1V/oct : sends the MIDI to CV out (not the Gate)
  • CV IN: works at 1V/oct and can accept from +/-12V
  • OSC OUT: sends 10Vpp Sawtooth or Pulse Wave
  • Envelope out: 0-6.6V depending on the depth setting
  • LFO out: +/-5V
  • Weight: 0,9 kgr
  • 209 x 160 x 40 mm
