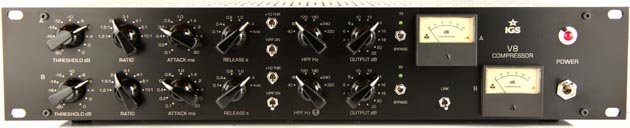

The V8 Compressor is built solely of discrete components. The three stepped circuit is balanced by three transformers each for both channels. Lundahl on input and mid step. Carnhill on output. The element responsible for the compression is the bridge composed of 4 pulse diodes matched by hand, according to carefully developed procedures. The device is constructed as a dual mono unit with channel link possible. All manipulators stepped, allowing for perfect peatability.
The V8 compressor is also equipped with a HPF Sidechain. This feature allows you to cut the lowest frequency region from compression. An additional switch on the front (+10THR) allows for increasing the compressor’s threshold by an extra 10dB. This feature is useful when compressing very low signal or for very strong compression. The typical application for IGS V8 is a bus compression. However, due to its nature and the incredible range of tone and color settings, use of the V8 compressor is unlimited.
Specifications:
– Dual mono unit
– Link switch
– XLR transformer balanced input and output
– 4 Lundahls and 2 Carnhills inside
– Hard-wire Bypass switch
– 25dB of gain reduction
– Crosstalk: -106dB
– Frequency response: – 0.1dB: 20Hz-20KHz
– 12 pole stepped manipulators
– Internal power supply
– 230V/110V Power option
– Power Consumption: 24 Watts
– Dimensions: 19″ 2U, 230mm deep
– Shipping weight: 8 kilos
Pricing: 1860 Euro. www.igsaudio.pl
