MOTU introduces 8pre USB 16 x 12 audio interface/optical expander

With the new MOTU 8pre you can turn your computer into a powerful digital audio workstation with eight mic inputs. Or add eight high-quality mic/instrument inputs to your current system. The new interface is shipping now.

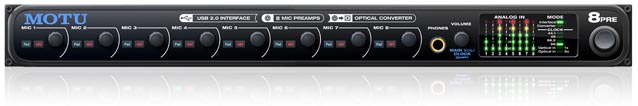

8pre Overview

The 8pre audio interface delivers everything you need to turn your computer into a powerful 24-bit, 96kHz digital audio workstation. The 8pre provides eight microphone/instrument preamps with pristine 96kHz analog recording and playback, combined with 8 channels of ADAT optical digital I/O. Expand your system by connecting additional 8pres or other MOTU audio interfaces.

The 8pre as your primary audio interface

Use the included CueMix™ software to mix all 16 inputs from your computer. Eight channels of ADAT optical I/O make the 8pre an ideal companion for a digital mixer. Two ADAT lightpipe connections work together to support a full 8 channels of optical digital I/O at any sample rate up to 96kHz.

Connect all of your studio gear, including microphones, guitars, synths, keyboards, drum machines and even effects processors. Then monitor all of these live inputs via the 8pre’s main outs or headphone jack — with virtually no monitoring latency and no processor drain on your computer. You can even create separate monitor mixes for the main outs and headphones. Control everything, including talk-back and listen-back, from the included CueMix Console™ software, just like a large studio console.

The 8pre includes a 16-channel MIDI interface. Simply connect the 8pre to your computer with any USB cable, and both MIDI and audio are ready to go. Connect any MIDI device, such as a controller keyboard, synth module, automated control surface or drum machine. Timing is sample-accurate with supporting software.

The 8pre provides cross-platform compatibility with Mac OS X (10.6 or higher), Windows (8/7/Vista) and all of your favorite audio software and host-based effects via WDM/ASIO/Core Audio drivers. Or you can use the included AudioDesk workstation software for Mac OS, with 24-bit recording/editing and 32-bit mixing/processing/mastering.

The 8pre as a microphone preamp expansion interface

The 8pre is really two products in one. When it is not connected to a computer via USB, the 8pre functions as an eight-channel analog to digital (optical) converter. Connect the 8pre to your MOTU 828, 896, Traveler or even another 8pre via the optical “lightpipe” connection to add eight high-quality microphone pre-amps to your system. Since the connection is digital, 100% pristine sound is maintained, down to the very last sample.


– 8 mic preamps: Eight studio-grade mic preamps deliver pristine sound, high gain, individual 48V phantom power, and 20 dB pad.

– Hi-speed USB 2.0: Hi-speed USB 2.0 provides across-the-board compatibility with laptops and desktops on both Mac and Windows.

– Optical expansion: Connect to a digital mixer or any audio interface with 8-channel ADAT optical. Supports 8 channels at 96 kHz.

– Flexible combo jacks: Connect microphones, balanced line inputs, and (hi-Z) guitars with independent control of preamp gain and mix levels.
