Focusrite Announces RedNet D16 AES – 16-channel AES3 I/O

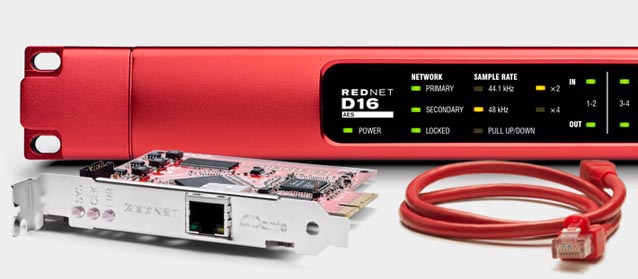

The Focusrite RedNet D16 AES is a 1U 19in rack-mount interface featuring 16 channels of AES/EBU connectivity to and from a Dante audio network, with Ethernet redundancy for maximum network reliability. Perfect for bridging between digital consoles, power amplifiers or any other AES3 equipped audio equipment and a Dante network, RedNet D16 AES has a Sample Rate Convertor (SRC) on each input pair allowing instant operation with any AES3 source. Word Clock and Digital Audio Reference Signal (DARS) connections provides synchronisation with a wide range of hardware, while S/PDIF I/O allows the integration of equipment such as CD or solid state recorders/players.

RedNet D16

Two DB25 connectors each provide eight channels of combined I/O to the AES59 standard, allowing speedy interconnection with other DB25-connected or XLR-based equipment by use of standard DB25 to XLR cables. The rear-panel XLR female input can be used either as a DARS sync source for the Dante system, or as an AES3 audio source replacing input channels 1–2 on the DB25 connectors. An XLR male socket provides a duplicated AES3 outlet for output channels 1–2. The RCA S/PDIF input can similarly replace input channels 3–4 of the DB25 connectors, while the S/PDIF output can replicate any adjacent odd/even pair of the 16 output channels.

The two network connectors on the rear of the unit allow two modes of operation. They can be used either as a primary/redundant network interface, allowing seamless switchover in the case of network failure, or as a daisy-chain port allowing the connection of multiple units.

All the clocking and input/output options of RedNet D16 AES are remotely-controlled by the RedNet Control software application for Mac and PC.
