The SoundForce DCO is an oscillator for Eurorack based on the architecture of the Juno-60/106 oscillator section. It is a modern homage to that sound using technology from the future. It provides true analog waveforms with digital stability.

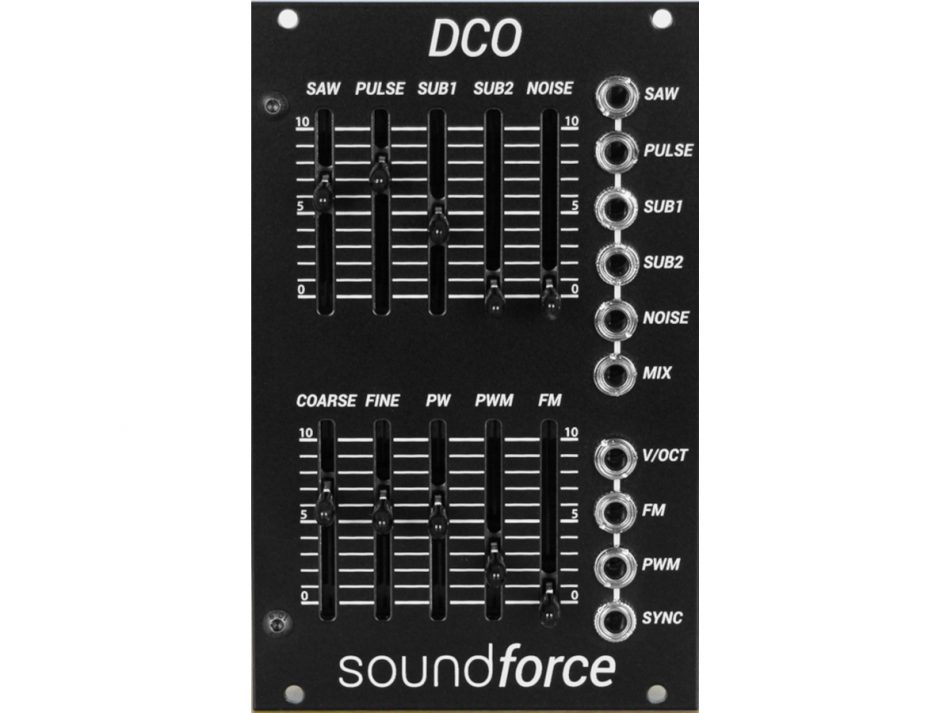

The SoundForce DCO features 10 slide pots (faders) reminiscent of the Roland synths. 5 sound sources are available: SAW, PULSE, SUB1 (1 octave lower), SUB2 (2 octaves lower) and NOISE. The built-in mixer allows you to mix them together using the faders and the MIX output jack. The PULSE has manual pulse width control, as well as PWM with a CV input and an attenuator. An FM input is also available with an attenuator. The oscillator can be hard synced to another oscillator using the SYNC input.
Specifications:
- 16HP
- Frequency range : 20Hz – 14kHz
- Depth: 24mm (+ power connector)
- Power: +12V 82mA, -12V 26mA
- V/OCT input range -3 to 7V
- FM input range -5V to 5V
- PWM input range -5V to 5V
Price and availability:
The module will be shown on the SoundForce booth next week at Superbooth (booth O501) along with some more upcoming modules. It’s available right now to pre-order at 229 euros (189 euros outside of Europe) on the SoundForce webshop. It will be shipping in June.
